All In One Milk Analyzer
all in one milk analyzer, Advance Milk Analyzer Max for Dairy Farms in Ganganagar, Bikaner, Hanumangarh, and Anupgarh
Features:
Capacity
90 sample/hour
Brand
Advance
Equipment Type
Fat Testing And Milk Collection System
Display
16x2 (S) LCD Yellow Green
Power Supply
220V AC / 12V DC
Country of Origin
Made in India
Usage/Application
Lab testing & Milk Collection Center
Phase
Single
Machine Body Material
S.S.Body
Dimensions
190 x 300 x 250 mm
Weight
5 – 15kg
Price
₹ 52,000
Fixed Rate. No Bargaining.कीमत तय है। मोलभाव नहीं होगा।
The function of the milk analyzer is to quickly analyze milk for FAT, SNF, proteins, lactose, water content, conductivity, and density.
Technical Specifications

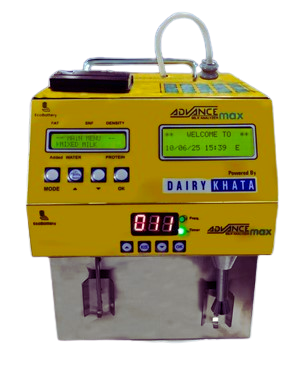

| Product Name | Advance Milk Analyzer Max (Inbuilt Data Processor Milk Collection Unit) |
| Model / Variant | AMAM-DPMCU-Max |
| Purpose / Use-Case | Village Milk Collection Center, Cooperative, BMC Point |
| Fat Range | 0.5% – 12% |
| SNF Range | 6% – 12% |
| Added Water | 0% – 60% |
| Density | 1.020 – 1.040 g/cm³ |
| Optional | Protein, Lactose |
| Accuracy (Fat) | ±0.1% |
| Accuracy (SNF) | ±0.15 – 0.2% |
| Accuracy (Added Water) | ±3 – 5% |
| Accuracy (Density) | ±0.0005 g/cm³ |
| Analysis Time | 25 – 40 seconds |
| Sample Volume | 20 – 30 ml |
| Weighing Capacity | 60 kg / 200 kg |
| Least Count | 10 g / 20 g |
| Weighing Accuracy | Class-III |
| Processor | ARM Cortex-M (32-bit M7) |
| Display | 128 × 64 Graphic LCD |
| Keypad | 5×5 matrix, USB/PS2 keyboard support |
| Storage | Internal Memory, Encrypted |
| Connectivity | USB, RS-232, |
| Price Logic | FAT/SNF-based rate chart, FAT/CLR-based rate chart, auto calculation |
| Printer | Inbuilt thermal / external 40-80 column |
| Power | 220V AC / 12V DC, ~60W |
| Environment | 15°C – 50°C, 30%–80% humidity |
| Platform | SS304 400×400 mm / 600×600 mm |
| Calibration | Auto-calibration, cleaning cycle, self-check |
| Reports | Daily, Member-wise, Payment, Bonus, USB Export |
| Training | Installation |
| Guarantee | 1 Years |
| Unit Weight | 5 – 15 kg |
