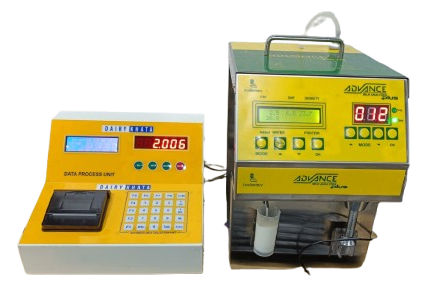

Milk Analyzer And Dpu
Milk Analyzer And Data Processor Unit(Dairy Khata) for Dairy Farms in Ganganagar, Bikaner, Hanumangarh, and Anupgarh
Features:
Capacity
90 sample/hour
Brand
Advance & Dairy Khata
Equipment Type
Fat Testing And Milk Collection Unit
Display
16x2 (S) LCD Yellow Green
Power Supply
220V AC / 12V DC
Country of Origin
Made in India
Usage/Application
Lab testing & Milk Collection Center
Phase
Single
Machine Body Material
S.S.Body
Dimensions
190 x 300 x 250 mm
Weight
5 – 15kg
Price
₹ 50,000
Advance milk analyzer with inbuilt data processor unit for milk testing, billing, and village milk collection centers.
Technical Specifications
| Product Name | Milk Analyzer ( Data Processor Unit) |
| Model / Variant | AMDPU |
| Purpose / Use-Case | Village Milk Collection Center, Cooperative, BMC Point |
| Fat Range | 0.5% – 12% |
| SNF Range | 6% – 12% |
| Added Water | 0% – 60% |
| Density | 1.020 – 1.040 g/cm³ |
| Optional | Protein, Lactose |
| Accuracy (Fat) | ±0.1% |
| Accuracy (SNF) | ±0.15 – 0.2% |
| Accuracy (Added Water) | ±3 – 5% |
| Accuracy (Density) | ±0.0005 g/cm³ |
| Analysis Time | 25 – 40 seconds |
| Sample Volume | 20 – 30 ml |
| Weighing Capacity | 60 kg / 200 kg |
| Least Count | 10 g / 20 g |
| Weighing Accuracy | Class-III |
| Processor | ARM Cortex-M (32-bit M7) |
| Display | 128 × 64 Graphic LCD |
| Keypad | 5×5 matrix, USB/PS2 keyboard support |
| Storage | Internal Memory, Encrypted |
| Connectivity | USB, RS-232, |
| Price Logic | FAT/SNF-based rate chart, FAT/CLR-based rate chart, auto calculation |
| Printer | Inbuilt thermal / external 40-80 column |
| Power | 220V AC / 12V DC, ~60W |
| Environment | 15°C – 50°C, 30%–80% humidity |
| Platform | SS304 400×400 mm / 600×600 mm |
| Calibration | Auto-calibration, cleaning cycle, self-check |
| Reports | Daily, Member-wise, Payment, Bonus, USB Export |
| Training | Installation |
| Guarantee | 1 Years |
| Unit Weight | 5 – 10 kg |
